Product Description

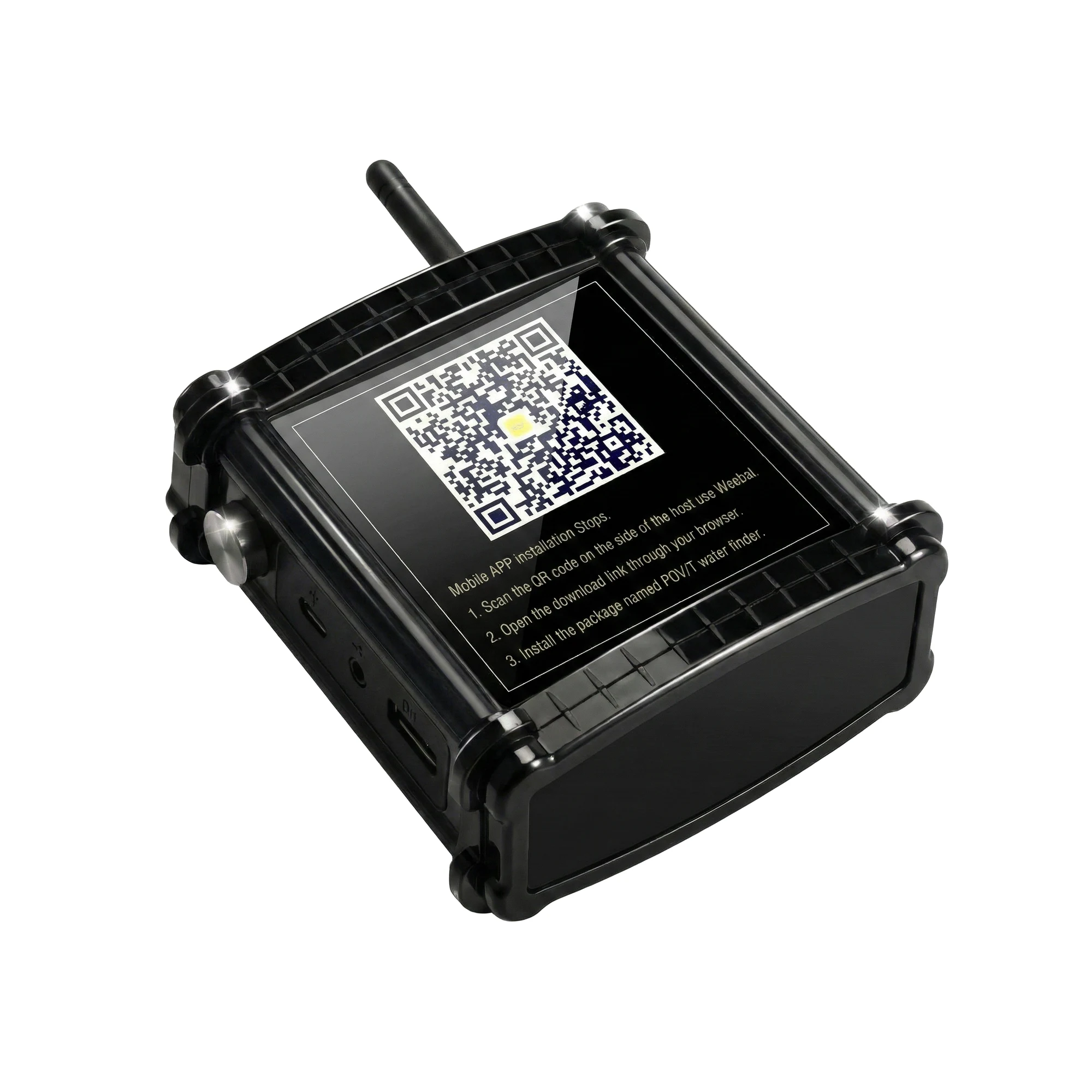

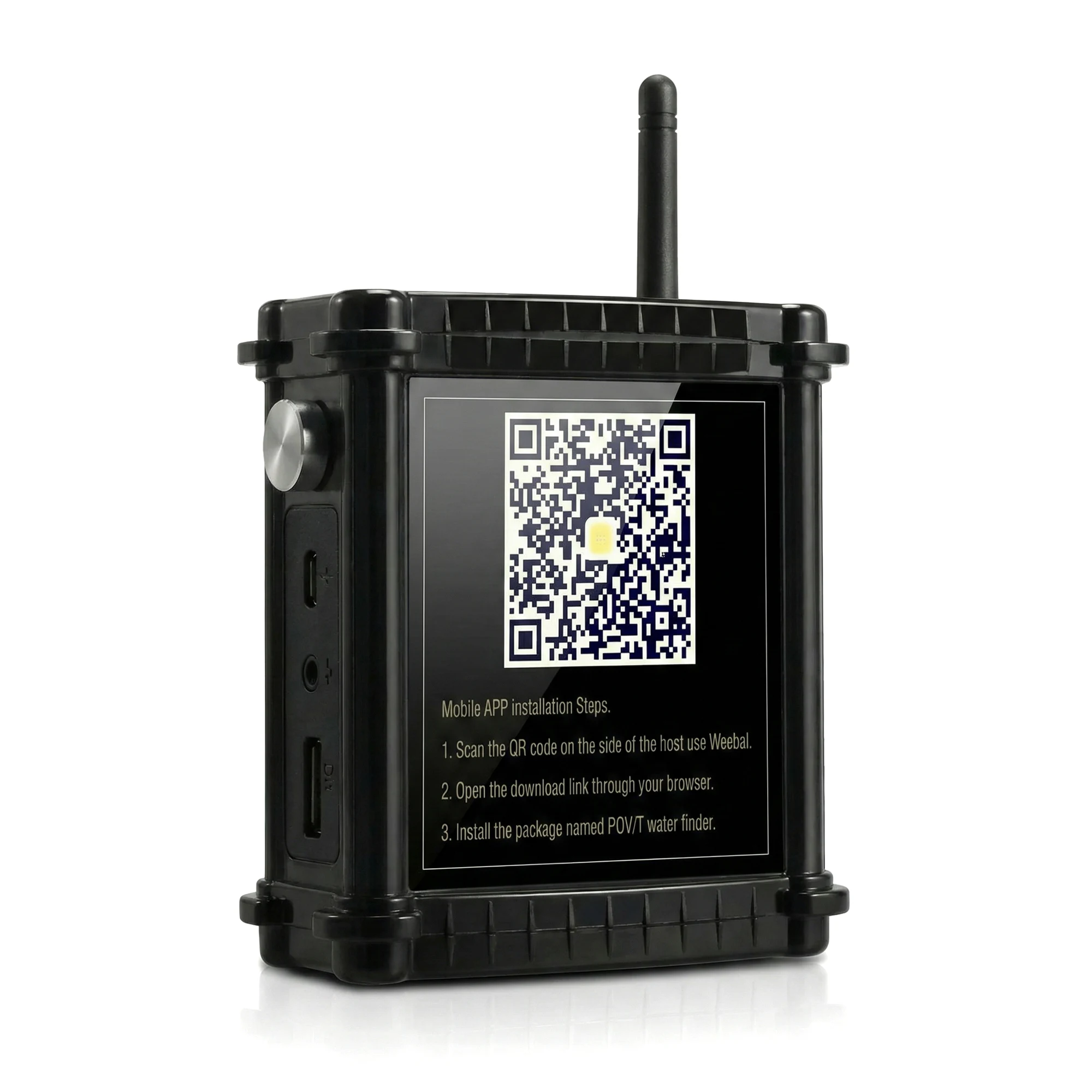

The PQWT-M Series Pipe Leakage Detector is an advanced geophysical exploration instrument designed to locate underground water sources with high precision. This “Automatic Mapping” device leverages the Earth’s natural electromagnetic field as a signal source. By measuring the conductivity differences between various geological structures, it allows users to identify aquifers, fractures, faults, and caves without the need for traditional, bulky resistivity equipment.
Product Features

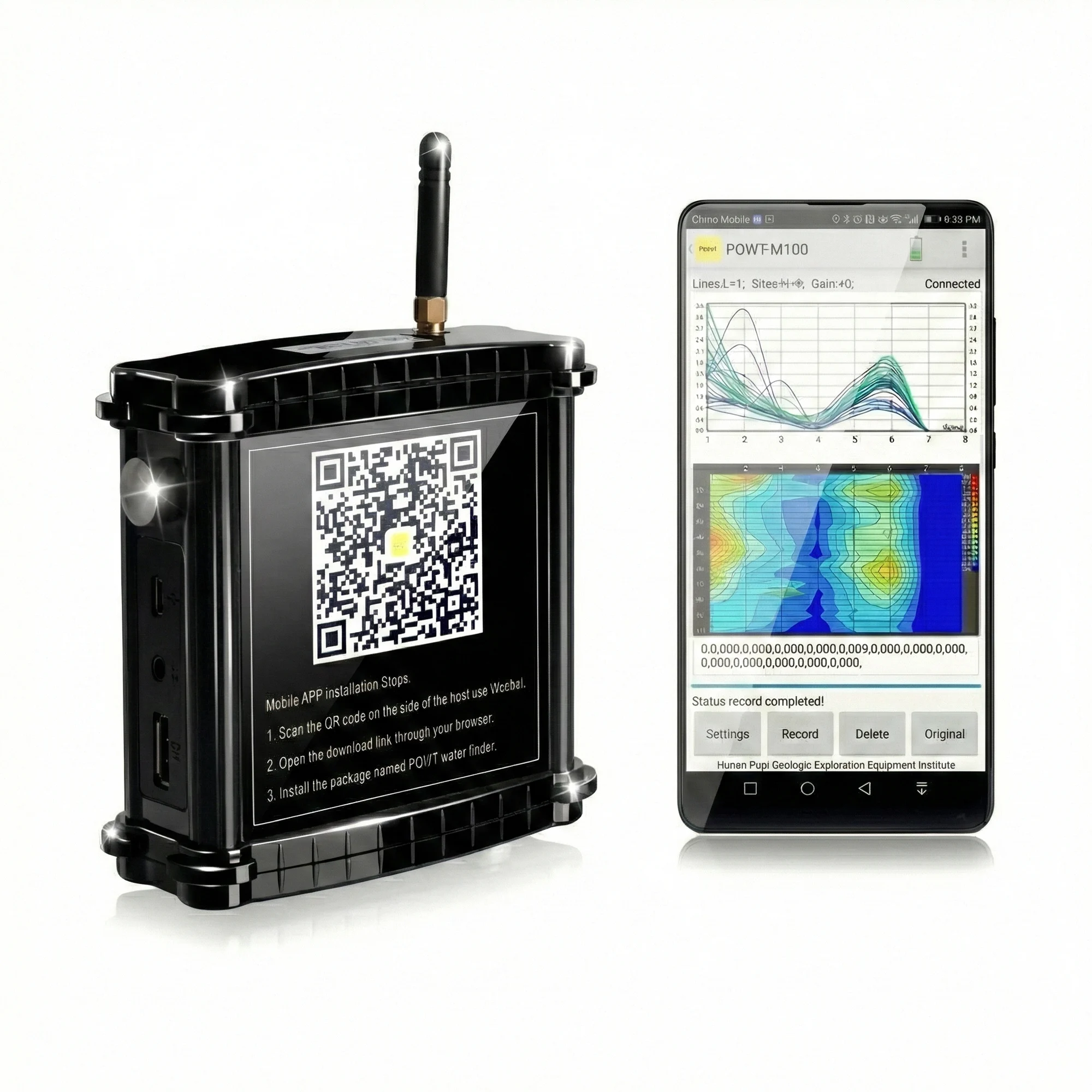

- Mobile App Integration: The system operates entirely via a dedicated Android application, allowing for real-time monitoring and data analysis directly on a smartphone.
- Automatic Mapping: Unlike older geophysical tools that require complex manual data plotting, the PQWT-M automatically generates high-definition geological profile maps and curves with a single button press.
- No Network Required: The device functions independently of internet connectivity or mobile traffic, making it ideal for use in remote, off-grid locations.
- Expert Remote Assistance: Users can upload their survey data for review by professional geologists who provide remote guidance to verify the best drilling locations.
- Ease of Use: Designed for non-technical users, the instrument can be mastered in approximately five minutes, eliminating the need for extensive geological training.
Specification
The PQWT-M series utilizes the “Natural Electric Field Frequency Selection Method” to measure self-potential (in millivolts) across multiple frequencies. This functionality enables the device to differentiate between low-resistivity zones (typically water or mud) and high-resistivity zones (such as hard rock or cavities).
- Measurement Range & Accuracy: Detects signals from 0mV to 2000mV (model-dependent) with a high resolution of 0.001mV and a precision of ±2%.
- Hardware Interface: The host unit is lightweight (0.55kg) and includes a Bluetooth 5.0 module for wireless communication with the mobile device.
- Power System: Powered by dual 18650 3000mAh rechargeable lithium batteries, providing roughly 8–10 hours of field operation.
- Channel Configurations: Available in 4, 6, or 8-channel variants to provide varying levels of data density and depth accuracy.
Model Variations:
The series is categorized primarily by maximum detection depth to suit different project scales:
| Model | Detection Depth | Measuring Channels | Measurement Frequency |
| PQWT-M100 | Up to 100 Meters | 4 Channels | 30 Frequencies |
| PQWT-M200 | Up to 200 Meters | 6 Channels | 36 Frequencies |
| PQWT-M400 | Up to 400 Meters | 8 Channels | 48 Frequencies |
Ideal Use Cases:
The PQWT-M Series is most effective in scenarios where rapid, non-invasive geological assessment is required:
- Borehole Drilling: Identifying the precise location and depth of aquifers before mobilizing expensive drilling rigs to minimize “dry hole” risks.
- Agricultural Irrigation: Helping farmers find sustainable groundwater sources for crop management in arid or mountainous regions.
- Rural Water Supply: Assisting small communities or independent drillers in locating drinking water reservoirs.
- Geological Surveys: Analyzing subsurface structures like faults or fractures for civil engineering or land development projects.
